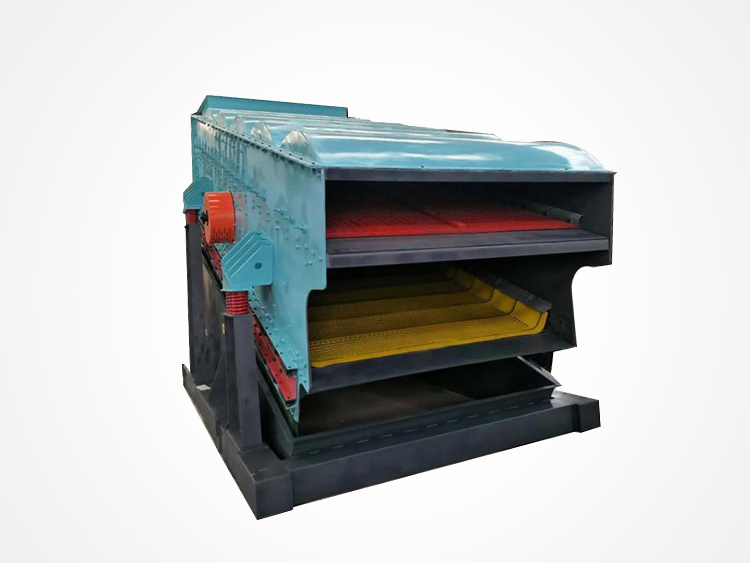

Flip-flow screen

Flip-flow screen is a special screening equipment for viscous, high moisture, fine, sticky and wet materials. If the handled material contains materials that easily block the screen, the flip-flow screen can achieve a very high screening efficiency with a relatively small screening area.

Original manufacturer, extensive experience

Hundreds of products, customized order

Reliable product performance, high cost performance

Perfect after-sales and worry-free service

在线订购

Service hotline: 15936539949

Detailed
Case
Service process
Related products
Message

Detailed

Parameter：

Specification	Single area（m²）	Layer No.	Inclined angle(°)	Particle size(mm)	Water content(%)	Powerkw)	Capacity(t/h)
CZS30110	33	1/2	16-25	3-50	≤15	30/55	360
CZS3090	27	1/2	16-25	3-50	≤15	30/55	300
CZS2790	24	1/2	16-25	3-42	≤15	30/55	260
CZS2770	19	1/2	16-25	3-42	≤15	30/55	200
CZS2480	19	1/2	16-25	3-35	≤15	30/55	200
CZS2465	15.5	1/2	16-25	3-35	≤15	30/55	170
CZS2070	14	1/2	16-25	3-30	≤15	30/55	150
CZS2055	11	1/2	16-25	3-30	≤15	22/45	120
CZS1660	9.5	1/2	16-25	3-25	≤15	22/45	105
CZS1650	8	1/2	16-25	3-25	≤15	22/45	90
CZS1350	6.5	1/2	16-25	3-20	≤15	18.5/37	70
CZS1340	5.2	1/2	16-25	3-20	≤15	18.5/37	60

Product features

Large effective screening area, high screening efficiency

Longer movement time of the material on the screen ensures the screening accuracy and enhances the screening rate

Adopt screen mesh cleaning device to prevent screen hole blockage

Unique structure design, support easy screen replacement, reduce maintenance costs

Airtight dust removal, safe operation and low noise
